GPX Pro Series
Scalable, Site Monitoring Solutions
SuitelifeSystems designed the GPX Pro Series to be a flexible monitoring and control device, economically viable as a complete solution for individual stations and remote sites, or as part of a wide scale Network Monitoring System. Embedded software allows full SNMP management capabilities, device pinging, and alarm/event notification, all within a 1RU footprint.

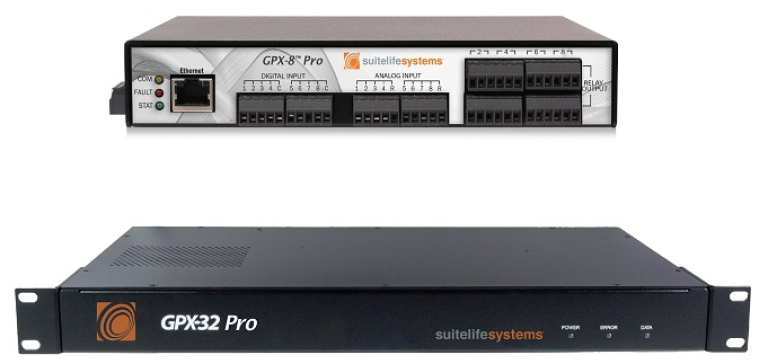

Both the GPX-32 Pro and GPX-8 Pro models are powered by SLS WebControls software, our powerful remote monitoring interface, providing you with incredible depth of detail, and programming flexibility. Which model you choose will be determined by the number of devices you wish to monitor, their connectivity requirements, and how you wish to interact with them.
GPX Pro models are fully functional as a standalone site management tools, but multiple units can also be securely networked via the new SLS CloudControls. All units are also fully backward-compatible to earlier systems, and can easily be deployed as part of a SuitelifeSystems Axess or Axess NOC monitoring platform.
All GPX Pro models are backed by 20+ years of industry-leading broadcast monitoring experience and dependability. Our software based solutions safely and securely leverage the power of IoT, interfacing with gear you already own. We provide buy-it-once solutions that keep you in control for decades to come. The gear you have. The control you want. The security you need.

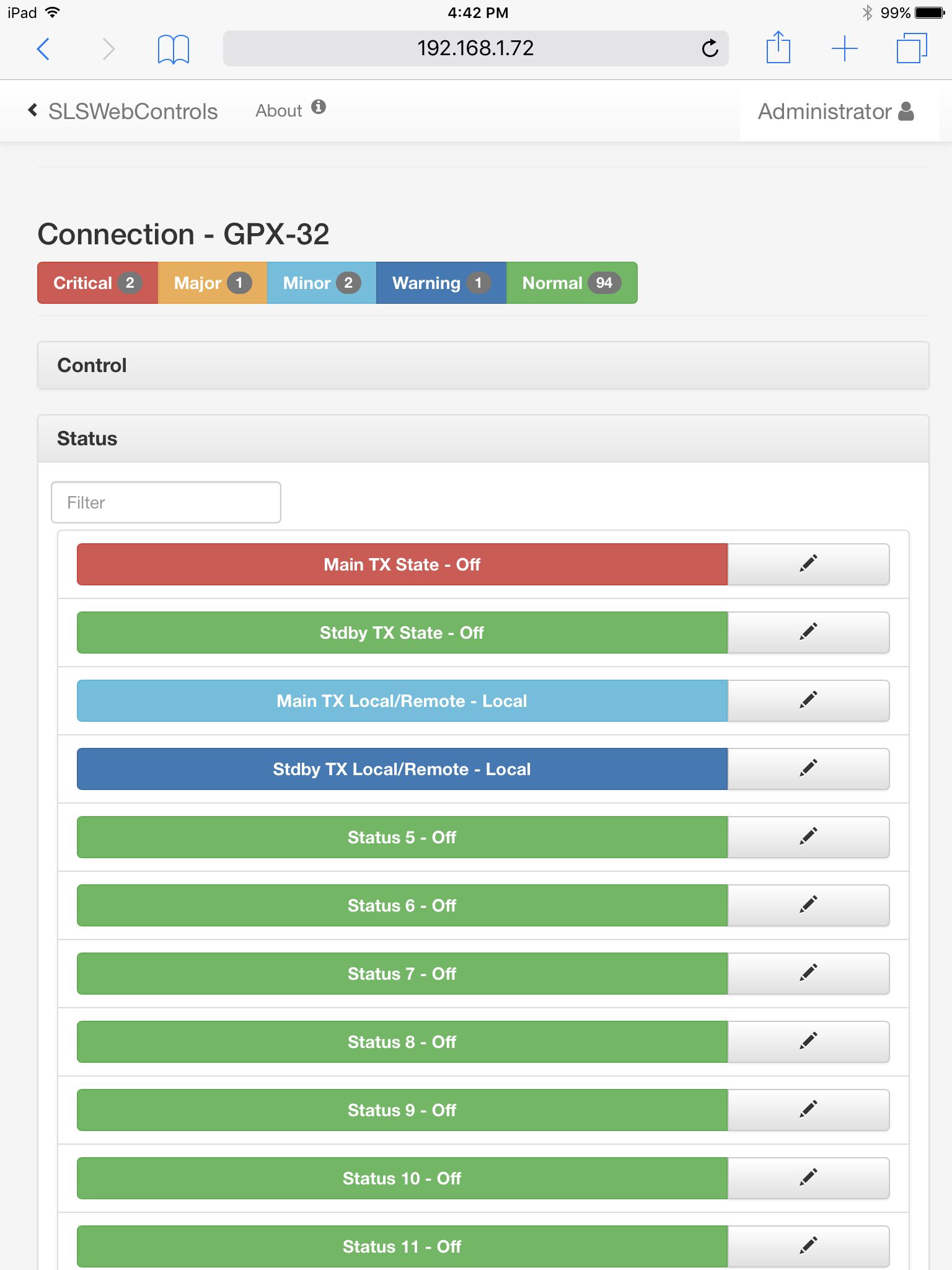

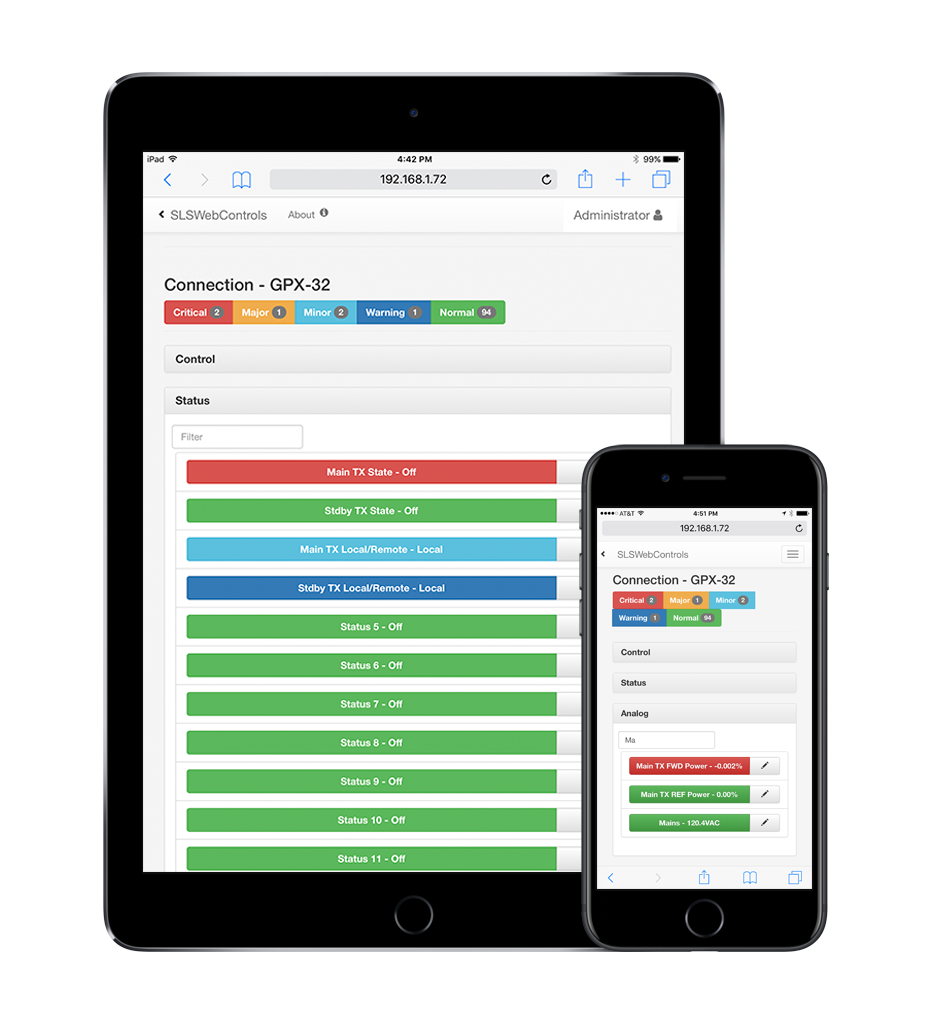

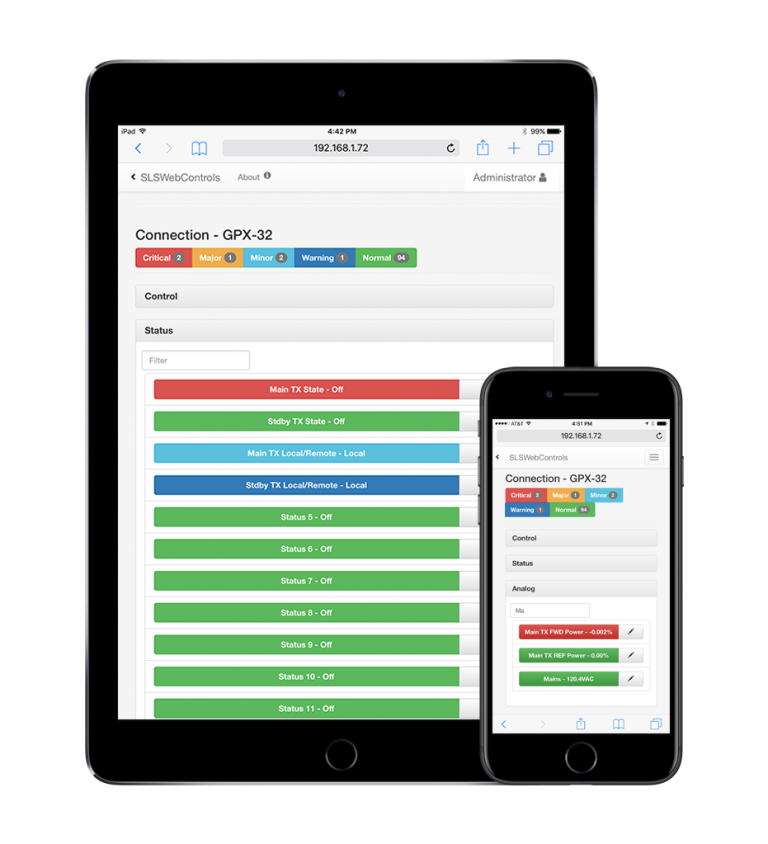

SLS WebControls
Manage.
- Sophisticated software embedded in each model
- Includes a complete management toolset for device interfacing, notifications & alarms, and multiple user-level interrogation schemes
- Securely provides incredible depth of detail, with programming flexibility

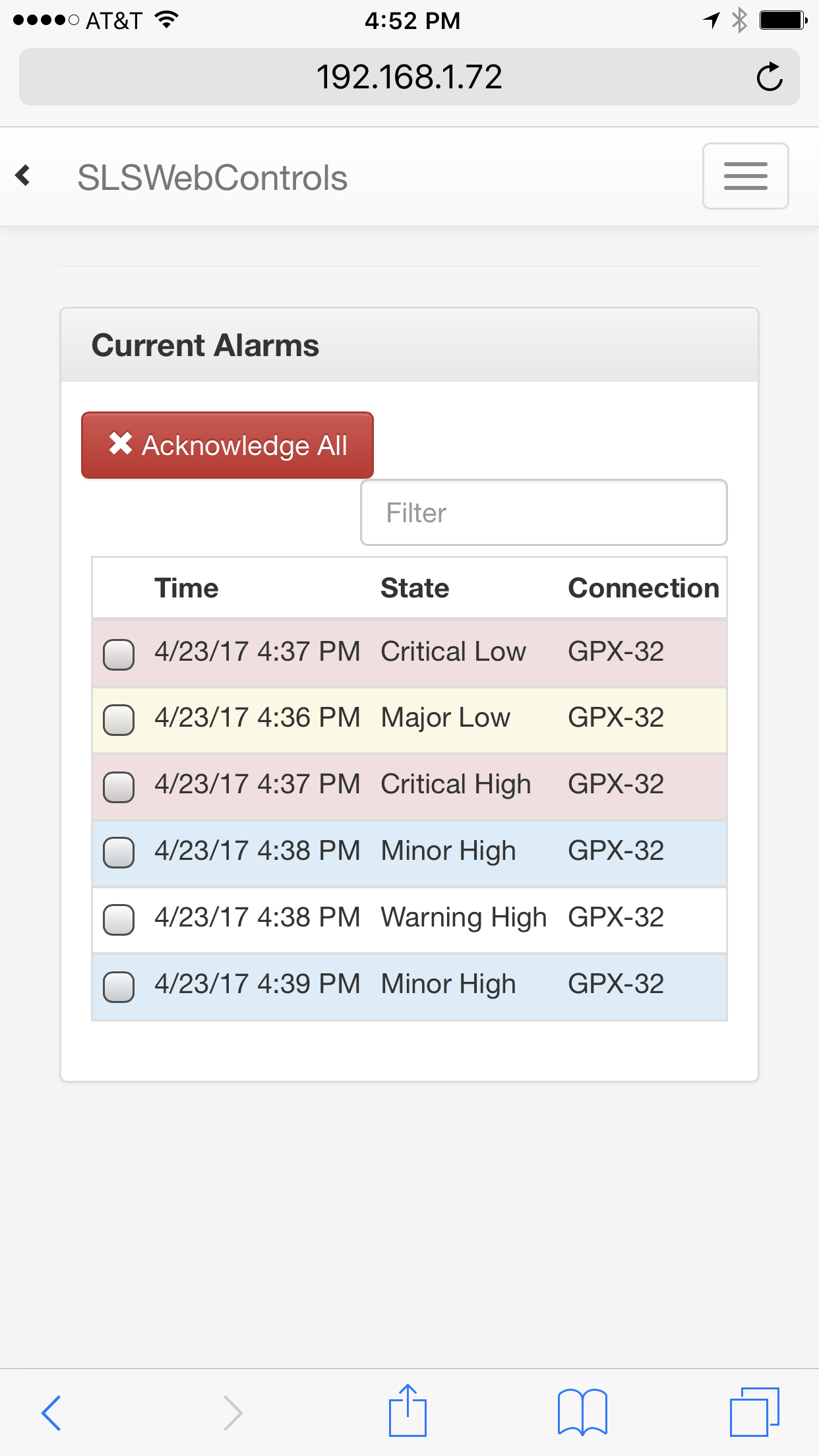

Monitor.
- Provides accurate and comprehensive data metering, allowing complete remote site performance monitoring of just the data you want
- The web-based user interface ensures secure remote site connection to any screen, anywhere, any time
- Multiple systems can be linked via the cloud, providing an affordable and scalable NOC approach, allowing adjustments to the number of devices and sites as requirements shift
Control.
- Interfaces via SNMP, Serial, TCP IP and GP I/O enable full control of most devices, allowing a large variety of functional requirements
- Adding full SNMP functionality increases efficiency via Data Point Independence, allowing you to selectively connect to only your desired datapoints
- Automate failovers with SCL macros, and monitoring by exceptions protocols, formerly only available with a full Axess license
- SLS WebControls detailed data management allows the preemptive management of on-air failures

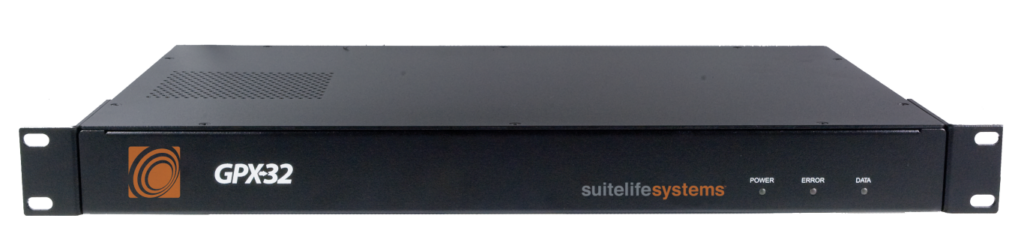

GPX-32 PRO
Power Supply
110-220VAC, 50/60Hz via standard IEC plug
Power Supply Specifications
Input Voltage: 100 ~ 240VAC
Input Frequency: 47 ~ 63Hz
Input Current: 0.8A ~ 0.5A
Operating Temperature
-30°C to +45°C (-22°F to 133°F)
Humidity
10% to 90% RH (non-condensing)
Mechanical Dimensions
19″W X 1.75″H (1U) X 10.5″D, Standard EIA Rack Mounting
Onboard Temperature Sensor
Operating Range: -30°C to +80°C
Onboard Humidity Sensor
10% to 95% RH
Onboard Voltage Monitoring
AC Mains Voltage
DC Bus Voltage
Status Indication
Data Illuminates with the arrival of incoming host data.
Error CRC Communication Error or any general error condition.
Power DC Bus Power Good.
Network Interface
Ethernet 10Base-T or 100Base-TX (Auto-Sensing)
Connector RJ45
Indicators (LED)
10Base-T/100Base-TX connection
Link and activity indicator Full/half duplex
Digital I/O
Opto-Isolated Inputs
Number of Inputs: 32 Total
I/O Connector: 0.050″ 68 Pin SCSI Connector
Input Voltage Range: +5VDC to +30VDC Non-Polarized Anode and Cathode available on isolated pins
Analog Inputs
Number of Inputs: 32 Balanced Differential
I/O Connector: 0.050″ 68 Pin SCSI Connector
Input Voltage Range: +/-5VDC and +/-15VDC, selectable in 4 banks of 8=
Input Modes:
1. Differential Both AIN+ and AIN- inputs driven within voltage range however neither signal falls below a common or ground reference. The difference in the 2signals is amplified across the full scale input of the ADC.
2. Bipolar AIN+ input driven within voltage range above and below AIN- while it is held at fixed reference. The signal is amplified across the full scale input of the ADC.
3. Unipolar AIN+ input driven within voltage range while AIN- is held at a fixed reference. The signal is amplified across ½ full scale of the ADC.
Input Impedance: Minimum 100K
ADC: 16 bit, 200Ksps, +/-2LSB INL, accurate to within +/-5% of input voltage
Relay Outputs
Number of Outputs: 32 Total
I/O Connector: 2 X 0.050″ 50 Pin SCSI Connector
Contact Rating: 1A @ 30VDC
Maximum Switching Power: 30W
Maximum Switching Voltage: 60VDC
Maximum Switching Current: 1A

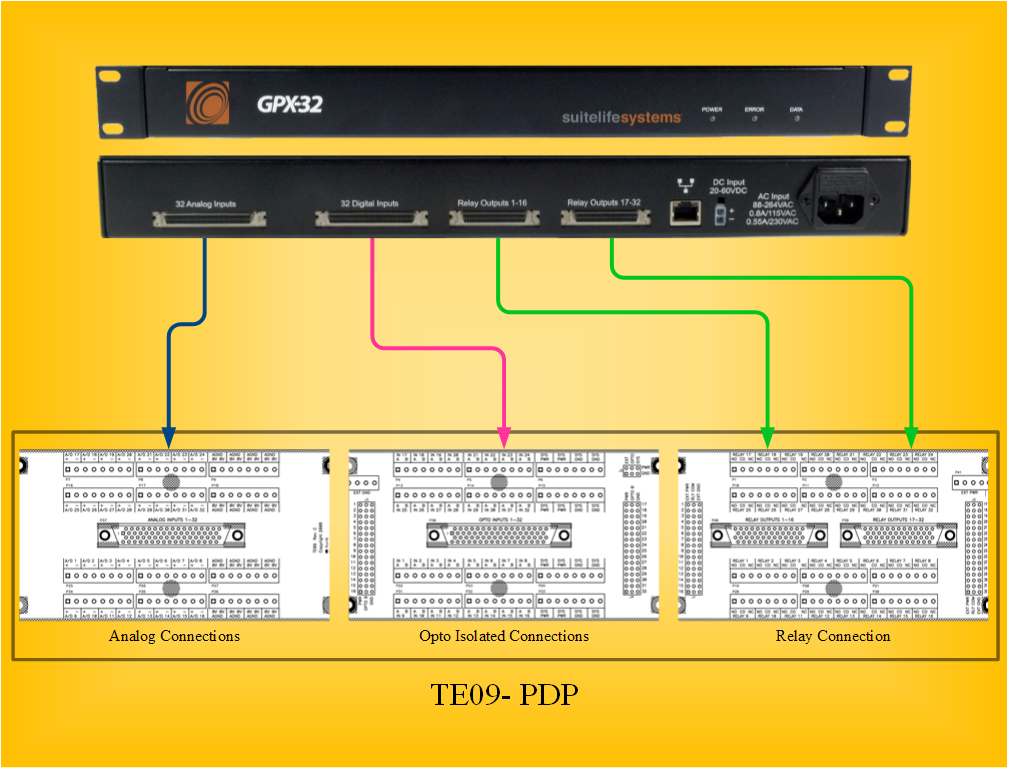

GPX-32 Connections to PDP

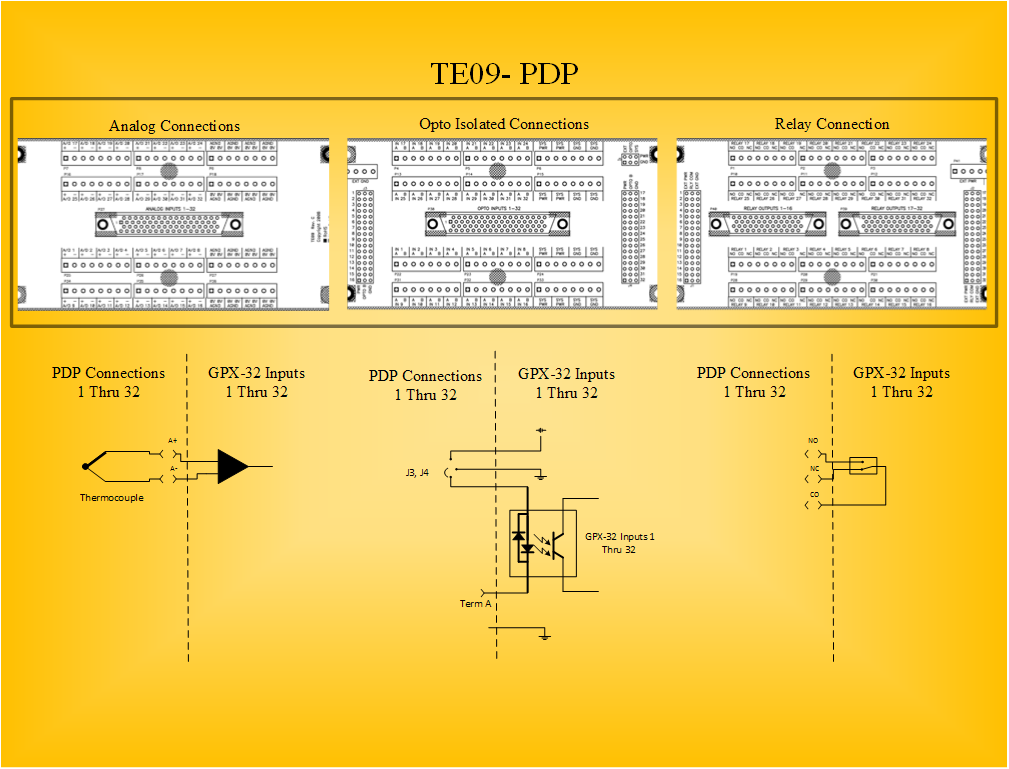

PDP Connections to GPIO
